Cement foam insulation board equipment

Guangzhou Hengde cement foam insulation board equipment adopts imported CLC foam concrete technology and formula, with ordinary cement, fly ash, sand and other main raw materials. The product is lightweight, fireproof, high strength and low thermal conductivity, meeting the requirements of building energy conservation and fire prevention.

Product accessories:

keyword:

keyword: Cement foam insulation board equipment

Product classification:

Germany imported equipment and foaming agent

Leave a message immediately.

Product Description

1. prospects and policy support

In recent years, fire accidents caused by building exterior wall insulation materials occur frequently, and the fire safety of building exterior wall insulation system has been paid attention to by relevant national ministries and commissions.

The Ministry of Public Security respectively issued the document [46] of 2009 "Interim Provisions on Fire Prevention of External Insulation Systems and Exterior Wall Decoration of Civil Buildings" and the document [65] of 2011 "Notice on Further Clarifying Relevant Requirements for Fire Supervision and Management of External Insulation Materials of Civil Buildings", which made very clear requirements for external wall insulation materials of residential buildings, public buildings and glass curtain wall buildings, and clearly pointed out that building insulation materials must use Class A incombustible materials, as a result, the use of A- level non-combustible insulation materials for building exterior wall insulation has become an inevitable trend.

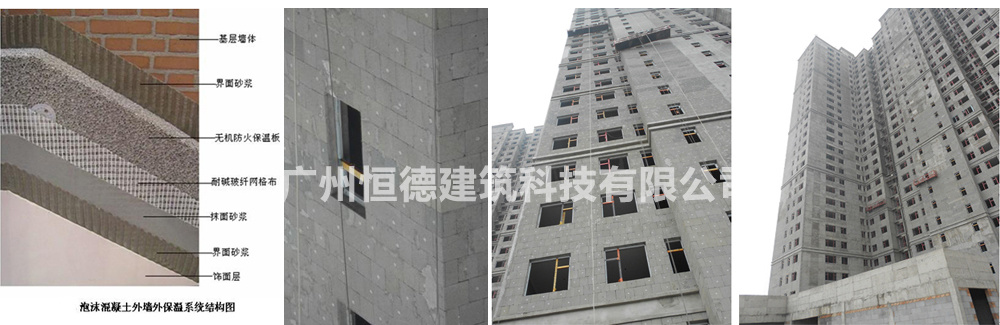

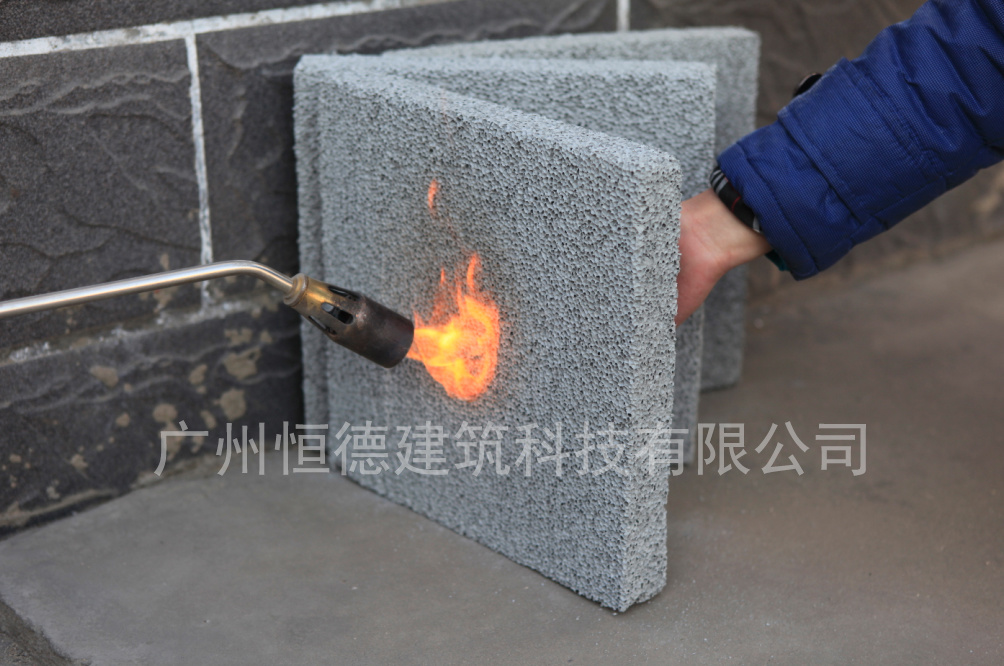

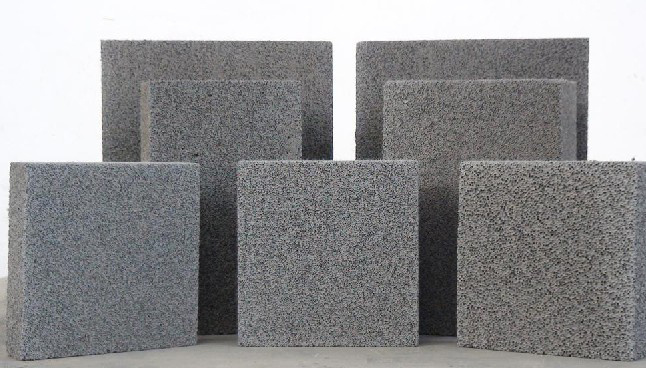

cement foam insulation boardBelongs to non-combustible materials, non-toxic, environmentally friendly, low-carbon is a new type of energy-saving waste insulation material strongly advocated by the country, and its fire performance has reached A1 level. Is the current wall insulation and fire isolation belt ideal material, in line with the national building energy-saving promotion requirements.

2. Guangzhou Hengde automatic cement foam insulation board equipment production line technical advantages:

1. Imported foaming technology: AdoptingTechnology and formulation of imported CLC foam concreteWith ordinary cement, fly ash, sand and other raw materials, the product is light, fireproof, high strength, low thermal conductivity, and meets the requirements of building energy conservation and fire prevention.

2, the company's patented technology: equipped with cement foaming initial setting kiln technology, the equipment according to the cement solidification characteristics and set for temperature and humidity, to solve the problem of product instability due to temperature difference and the northern region can not be produced in winter, to achieve all the year round can be produced.

3. Short demoulding time: after formula adjustment and special curing of special initial setting kiln, low density can be demoulded in 8 to 10 minutes.

4. Less mold investment: the mold of the whole automatic production line is automatically recycled due to rapid demoulding.

5. Less labor in production: due to less labor in moulds and less labor at the same time, normal production only needs 4-6 people.

6. High daily production capacity: 3-5 minutes for one model, 1.2 cubic meters per model, 200-600m3 daily production and 80000 m3 (150000 m3 or more) annual production.

7, less damage rate: due to the use of large mold mechanized production, four-sided cutting, so the scrap rate is less. (The larger the mold, the less the waste surface is cut, and the smaller the mold, the larger the waste surface is cut. For example, 1.2 cubic meters are made together, 4 molds are 1.2 cubic meters, 16 waste surfaces need to be cut off for each 4 sides of die cutting, and only 4 waste surfaces need to be cut for full automation, thus saving 3/4 waste products)

8. Fully automated production: high degree of mechanical automation, low labor intensity of workers, no need for cumbersome handling, online automatic cutting, automatic transportation, and female workers can also operate production normally.

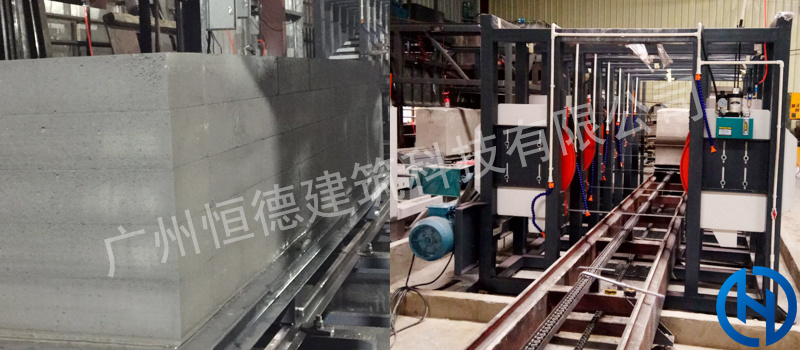

9、high precision high speed cutting saw: The new research and development of high-precision high-speed cutting saw system greatly improves the production capacity of the equipment, and the equipment has higher stability, strong durability and more convenient maintenance. The appearance of the product is neat, the size is standard, and there is no lack of edges and corners. Plate products can be cut to a cm thick size, ultra-light and ultra-thin, internal and external wall insulation are available.

10. The production cycle is short and the space occupied is small: it only takes about 10 minutes from feeding to finished products, and six sets of molds can be completed in 3-5 minutes on average, which completely overcomes the problem that domestic inorganic fireproof insulation boards cannot be mass-produced, and can be sold out of the factory after three days of maintenance, thus saving a large number of drying spaces.

11, low product cost: equipment in the production of a large number of mold costs, labor costs, damage rate costs, occupied space costs and extended (winter) production time costs, so the production cost is far lower than similar products, and the performance indicators meet or exceed national standards.

12. One machine with multiple functions: the multi-functionCement foam insulation board equipment, replacement of different molds can be produced in the same machine: light partition board, fire door core board, thermal insulation decorative integrated board, color steel plate, block brick, space board, etc.

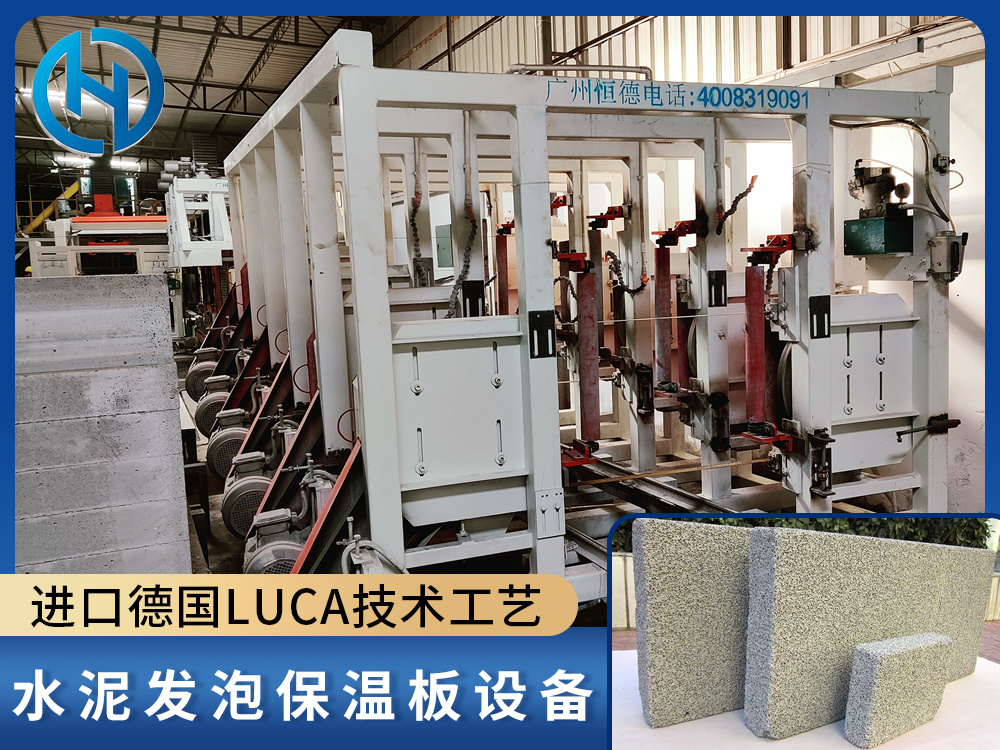

恒德全自动水泥发泡保温板设备

3. Guangzhou Hengde Automatic Cement Foam Insulation Board Equipment Product Bulk Weight

The production technology of cement foam insulation board below 100kg/m3 has been realized, and the advanced foam concrete technology of Germany has been newly introduced and authorized in China.

Bulk weight (kg/m3)	Compressive strength (Mpa)	Thermal conductivity W/(m.k)	Water absorption (%
70-150	0.25-0.45	0.038-0.045	≤5

[warm tip]: we cooperate with European and American countries, customers can choose to buy our company's automatic equipment, can also negotiate with us, choose to import production equipment from Europe and the United States.

Domestic can produce 3cm within the thin insulation board, especially suitable for the southern region of the building insulation.

　　Equipment output:Sub-small, medium, large, large 4 kinds of production.

　　Equipment price:Different production, different configurations, prices vary, Guangzhou HengdeCement foam insulation board equipmentCan be used in one machine, replacement of auxiliary equipment and formula can produce a variety of products, we will make configuration adjustments according to customer needs, the company project manager will provide you with equipment quotation, project report, picture data, etc.

Guangzhou Hengde automatic cement foam insulation board project investment overview:

Product Introduction	Product Specifications	Product bulk density	coefficient of thermal conductivity	Compressive strength
Product Introduction	330 × 330 × 30 ~ 100mm	150~220 kg/m3	0.039~0.045	0.52Mpa
Production conditions	Required plant	Required site	fire limit	frost resistance
Production conditions	800~1000m2	1000~1500m2	Level A1	loss of mass 2.1 strength 18.2

(I) production plant and water and electricity requirements

Production plant area: 20 meters wide, 60-100 meters long, 6 meters high

Maintenance area: about 300-700 square meters

(The above is flexibly adjusted according to the output of the equipment)

Water consumption: 50-150 tons/day electricity consumption: 150-300 kW (total power)

Total plant area: 6-15 mu of land (flexibly adjusted according to sales volume)

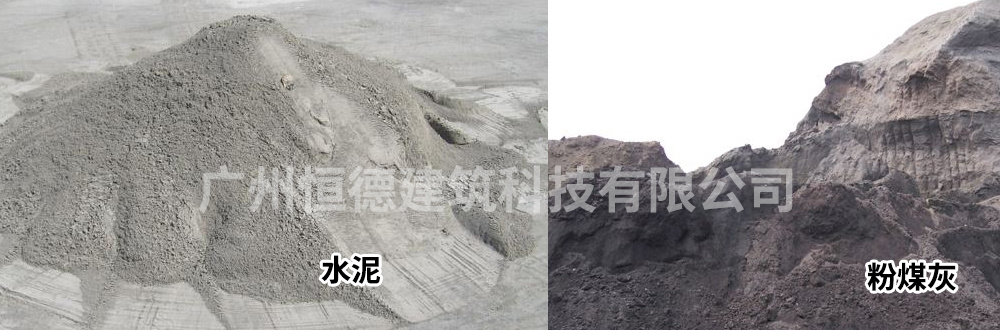

Raw materials for (II) production

1. Cement: 425R Portland cement

2. Fly ash raw ash (optional)

3. Stone powder fine powder (optional)

4. Sand (silt content ≤ 2% (optional)

5. Slag powder fine powder (optional)

6. Additives (provided by the company)

Raw materials required for the production of cement foam insulation board: 425 cement fly ash additive

Our customers are all over the country, especially in cloud, expensive, Sichuan and other provinces.

恒德CLC加气块设备发货图

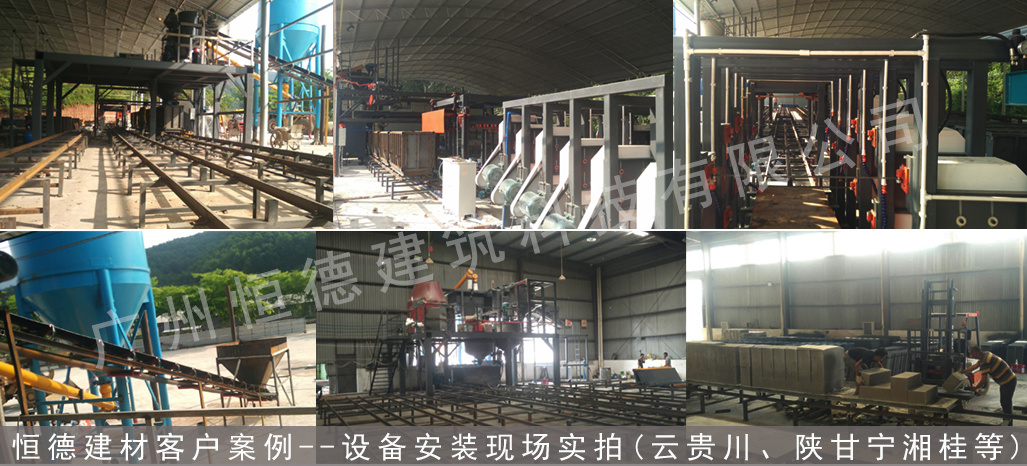

Over the years, many investors have chosen Hengde, and a large number of successful customers have good factory production conditions and product application cases.
